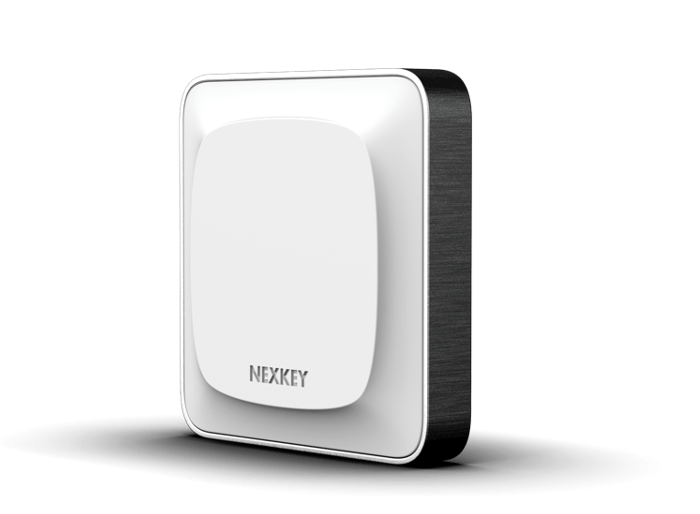

Nexkey
CONTROLLER
Connect any type of electric door hardware to the cloud, making it possible to unlock any door via Bluetooth.
Use existing door hardware
The controller connects with any electric door hardware and is hidden from the user. Adding readers is eliminated.
Simplified installation
No hubs, no readers, and no access control panels. We like to keep it simple, so the door only needs this one device.
Locally powered

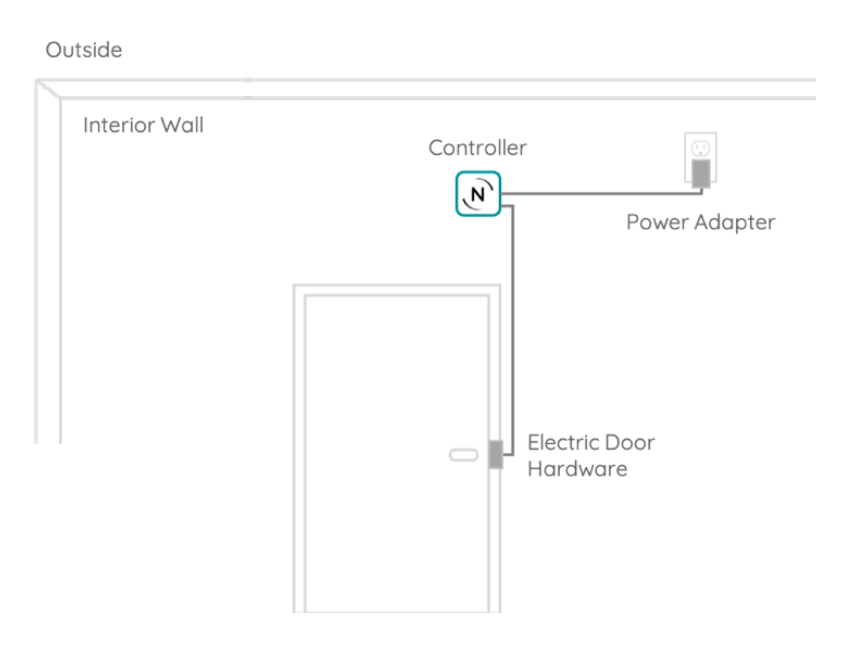

With traditional access control, you need to wire all controllers back to a panel. This device just plugs into an outlet!
All-in-one device
With both Wi-Fi and Bluetooth connectivity, this device is a reader, controller and hub all in one.
Electric Door Hardware
Magnetic Locks
Driveways
Garages
And more…
Technical Specs
| Size | 4.25” x 3.4” x 1.25” |
|---|---|
| Weight | 136.1 Grams |
| Color Options | Black (White coming soon) |
| Unlock Credential | Mobile - iOS 10.0 or higher- Android 4.0 or higher |
| Connectivity | Bluetooth LE + Wi-Fi |
| Power | 12-24VDC - 50mA (.05 Amps) |
| Network Requirements | 2.4 GHz IEEE 802.11/b/g/n (Supports Open, WEP,WPA and WPA2-PSK) |
| Operating Temperature | 0 to 70°C |
| Certifications | FCC |

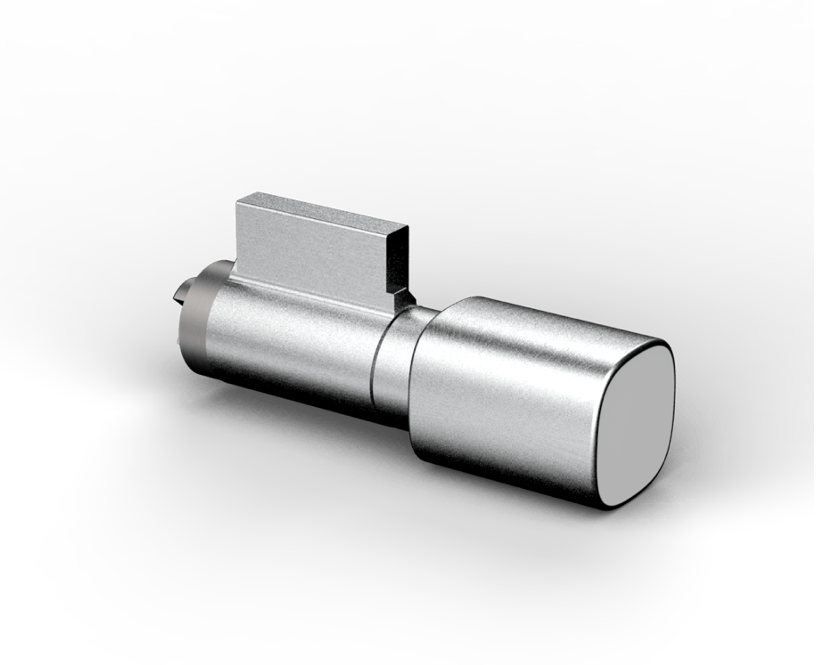

CORE
Any mechanical lock cylinder is replaced with the Core to connect any door to the Nexkey platform. Grant access and unlock every space with a phone.
Fits any type of lock
As the most compatible smart access device in the industry, Nexkey Core was made for every mechanical lock.
Audit trail where it wasn’t possible
Meeting rooms, supply closets, and private offices with mechanical locks can now track who had access and when.
Install in minutes
The installation is extremely simple and only takes minutes, no access control experience required.
Battery lasts for years
Unlike consumer smart locks, the Core battery lasts 50,000 unlocks. That over a decade if used 10+ times every day.
Mortise
Deadbolt
Lever
Cam
And more…
Technical Specs
| Size | 2.46” x 1.12” x 0.8” |
|---|---|
| Weight | 65 Grams (without Battery) |
| Color Options | Silver (Talk to us for custom finishes) |
| Unlock Credential | Mobile |
| Connectivity | Bluetooth LE |
| Power | ER14250 (Li-S0CI2 - 1/2AA - Non-Rechargeable) |
| Network Requirements | iOS 10.0 or later Android 4.0 or later |
| Operating Temperature | 0 to 70°C |
| Certifications | FCC |

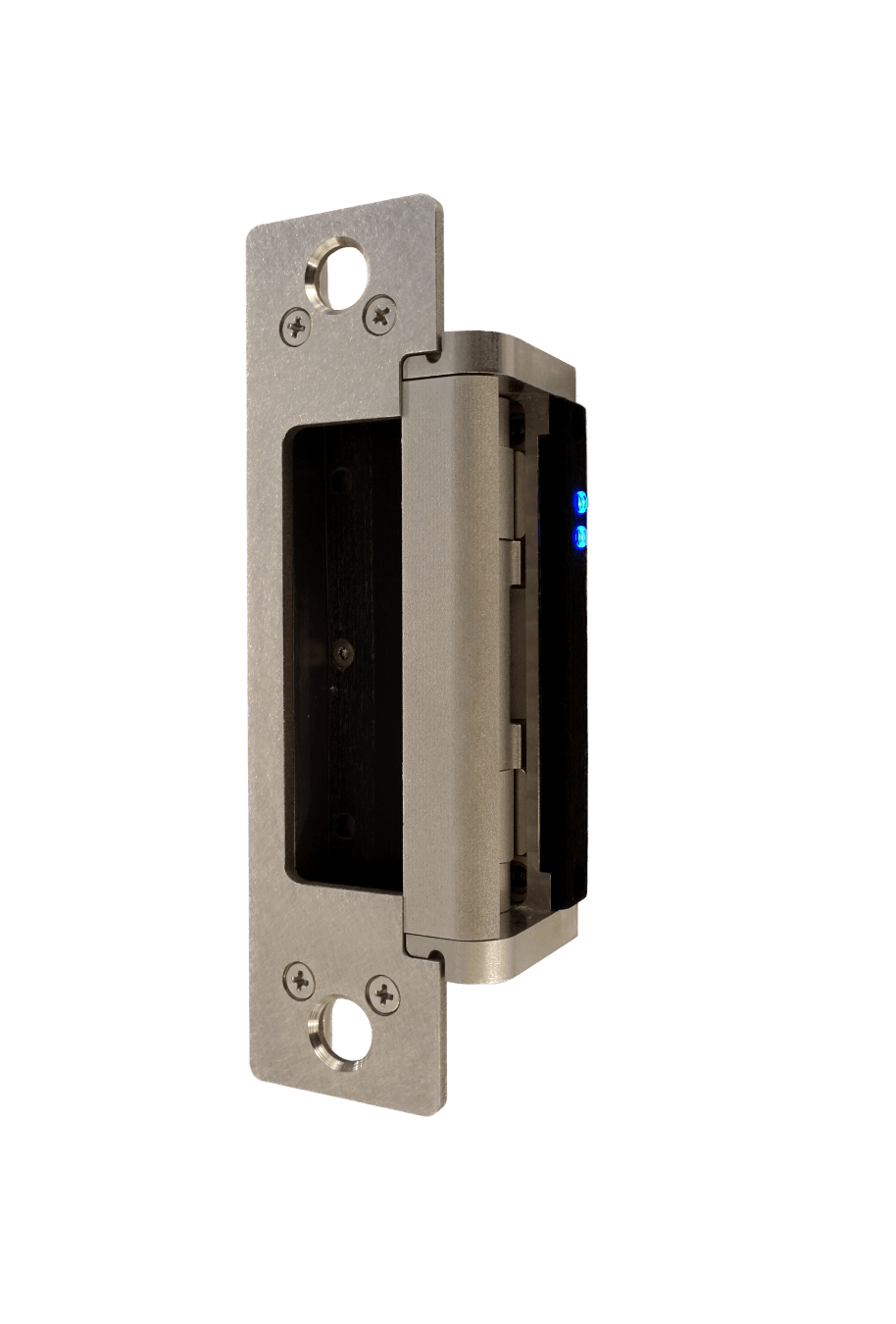

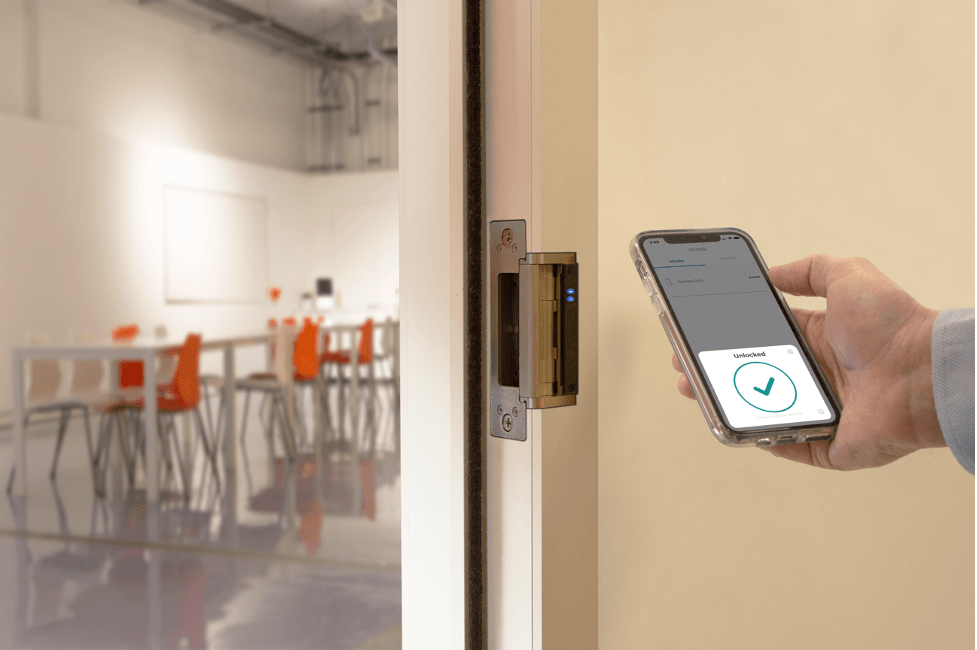

SOLO
Meet the world’s first wireless smart door strike that takes all the access control intelligence and simply puts it in the door frame.
Keep your design flawless
Hidden in your door frame. No wires to run, holes to drill or ugly mounted hardware. Choose convenience without having to settle for ugly.
Works with what you have
No hubs, no readers, and no access control panels. Keep your existing door hardware & maintain your ambiance.
All you need in just one device
An entire access control platform in a device that’s smaller than your hand. Access Control has never been so easy.
Simplify your business
Connect all doors to the cloud. Move beyond the front door. Keep track of every key and unlock through one unified app.
- No additional hardware required
- No wiring needed
- Battery lasts 18 months & lock stays secure when the battery dies
- Non-handed to work on left and right opening doors
- Physical key unlock option is available
- Supports up to a .” latch
Technical Specs
| Lock Compatibility | Cylindrical and Mortise without Deadbolt |
|---|---|
| Frame Compatibility | Metal and Wood |
| Finish | 630 Satin Steel |
| Unlock Credential | Nexkey iOS, Android & Apple Watch Apps |
| Key Management | Via Nexkey Mobile Apps and Nexkey Portal |
| Connectivity | Bluetooth LE 5.2 or lower |
| Bluetooth Range | Up to 4.5 meters |
| Battery | Replaceable 2 x ½ AA (Lasts for 18 months based on standard high traffic commercial use) |
| Operating Temperature | -20. to 55.C |
| Warranty | 12 months |
Included in the Solo Kit:
- Nexkey Solo
- Faceplate
- 2 x . AA Batteries
- Mounting Screws
- Cut out template
